This APCO P25 Decoder Plug-in makes it possible to receive and listen to digital APCO P25 channels on WiNRADiO WR-G315 Series receivers.

APCO Project 25 (P25) was developed by joint efforts of the Association of Public Safety Communications Officials International (APCO), the National Association of State Telecommunications Directors (NASTD), several US Federal Agencies and the National Communications System (NCS). It was established to address the need for common digital public safety radio communications standards for public safety, homeland security and emergency response.

APCO P25 digital communications offer numerous advantages over analog ones, such as much clearer received audio, separation of services (fire, homeland security, maintenance, etc.) into coded "talkgroups", individual radio identification numbering and tracking, GPS location, digital messaging, etc.

For this project, WiNRADiO licensed the IMBE (Improved Multi Band Excitation) vocoder from Digital Voice Systems, Inc. (DVSI) and combined it with WiNRADiO proprietary software to provide a complete P25 demodulator/decoder for WR-G315e or WR-G315i users.

Compared to the APCO P25 decoder for the low-cost WR-G305 models, the WR-G315 version offers a significant number of enhancements:

 Logging of APCO signal paramaters
 Squelch function based on APCO parameters
 Recording function based on APCO parameters
 Manufacturer's ID indication
 Indication of a greater number of encryption types
 Emergency indication

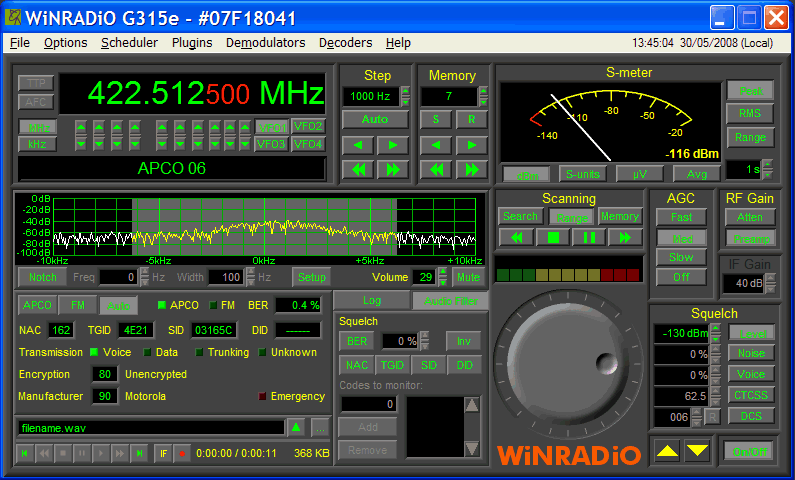

The APCO P25 Decoder is an XRS Plug-in which, upon installation, can be selected from the receiver's Demodulators top bar menu, as simply another alternative demodulator. The APCO P25 Decoder then appears fully integrated within the receiver front panel:

The APCO P25 Decoder panel consists of the following main parts:

 Spectrum scope, which shows the real-time spectrum of the received signal
 Notch filter, which makes it possible to eleminate or reduce effects of interference
 Analyzer panel, which shows the type of received signal and its parameters
 Squelch panel, which makes it possible to restrict reception to particular P25 users or groups
 Recorder/player, which can record audio as well as the intermediate frequency signal
 Playlist, which makes it possible to easily and quickly select previously recorded files

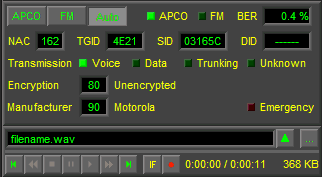

The APCO P25 Analyzer panel makes it possible to determine whether the incoming signal is APCO and analyze its parameters. There is also an automatic switching facility which makes it possible for the receiver to stay tuned on a mixed analog/digital channel and the switching between standard FM demodulation and APCO P25 digital decoding is performed automatically. The Analyzer will also determine the type of received digital signal (voice, data or trunking control channel), whether any encryption is being used and what type of encryption it is. (However, it will not actually decode encrypted signals.) The signal BER (Bit Error Rate) is also measured and displayed, making it possible to assess the quality of the received signal.

The APCO P25 Digital Squelch panel makes it possible to set the numerous digital parameters available in an APCO P25 transmission to filter out unwanted transmissions and target only one particular user or a user group. This is accomplished using APCO P25 specific digital codes, such as the NAC (Network Access Code), SID (System Identification), TGID (Talk Group Identification), etc. The digital squelch can also control the recorder, so that only the desired communication of a particular talkgroup or individual user is being recorded. In addition to decoded audio, the built-in recorder can also record the incoming signal in its raw, undecoded form at the IF (intermediate frequency) level. This makes it possible to "re-receive" the transmission many times over with changed parameters (for example different notch filter settings and/or digital squelch), archive unknown transmissions for later analysis and decoding, etc.
