Introducing a breakthrough

Just when you thought that there is nothing in shortwave that can surprise you anymore, here comes the new WiNRADiO G303i shortwave receiver.

This award-winning low-cost receiver continues in the fine tradition established by WiNRADiO's successful range of wide-band PC-based receivers.

The "G3" stands for "the third generation": As the original, award-winning, first-generation WR-1000i receiver was the world's first commercially available wide-band receiver on a PC card when launched years ago, the newly introduced WR-G303i is the world's first dedicated shortwave receiver on a PC (PCI bus) card.

The WR-G303i receiver is also the first commercially available receiver where the entire final intermediate frequency stage and an all-mode demodulator are entirely executed in software, running on a personal computer.

The WiNRADiO G303i: A ground-breaking shortwave receiver that will surely amaze you.

A Software Defined Radio (SDR) is such where demodulation and last IF (intermediate frequency) processing are done entirely in software. Usually this means using a DSP, but in the case of the G303i, this processing is done on a personal computer using a sound card (most modern PCs are now faster and more powerful than many DSPs were only a few years ago). So, if you own a PC, the chances are that you already own an important part of a software defined radio receiver!

In addition to the flexible and friendly user interface, with its numerous functions and facilities not normally available on any conventional receiver, the WiNRADiO G303i receiver excells particularly by the ability of its demodulators: While the Standard Demodulator provides performance of a highly respectable shortwave receiver including synchronous AM demodulation and a real-time spectrum scope, the optional Professional Demodulator offers even more: continuous IF filter bandwidth adjustment (in 1Hz increments), interactive block diagrams with two additional audio spectrum scopes, and even inbuilt THD and SINAD measurement facilities.

An optional DRM decoder/demodulator is also available.

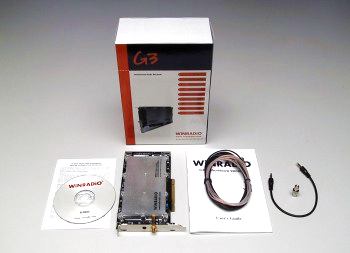

What's included?

The standard WR-G303i package includes:

 WR-G303i receiver card
 Application software
 Comprehensive user's manual
 Start-up antenna
 Audio lead
 BNC-to-SMA adapter

System requirements:

 PC with 500 MHz Pentium CPU or faster
 One free PCI slot
 Windows XP/Vista/7
 Standard sound card
