  WiNRADiO AX-91M Magnetic Antenna Base

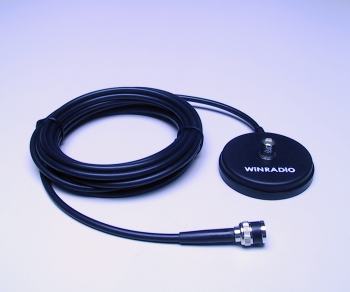

AX-91M Magnetic Antenna Base The WiNRADiO AX-91M is a high quality magnetic antenna base designed to securely mount a wide variety of antennas for mobile outdoor and stationary indoor applications.

The base is equipped with a BNC socket and is ready to accept most types of antennas ranging from short tuned stub antennas to long telescopic and loop antennas both for receiving and transmitting.

The AX-91M antenna base is ideally suited for wide band surveillance and monitoring work in a mobile environment where rapid deployment and reliability are essential. Although designed to suit the WiNRADiO range of antennas and receivers, the AX-91M base can also be used with other manufacturers' equipment.

The AX-91M antenna base is constructed from high-grade steel and weatherproof rubber, and will ensure trouble-free operation for many years.

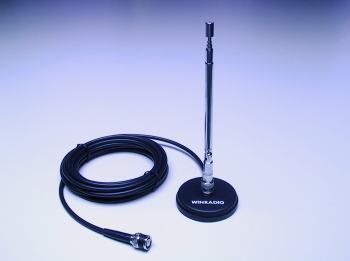

(AX-91M shown with WiNRADiO AX-06B Telescopic Antenna.)

Recommended antennas

 WiNRADiO AX-06B Telescopic Antenna (20 - 1800 MHz)
 WiNRADiO AX-07B Flexible Antenna (100 - 900 MHz)

Recommended receivers

 WiNRADiO WR-G303e (0.009 - 30 MHz)
 WiNRADiO WR-G305e (0.009 - 1800 MHz)
 WiNRADiO WR-G313e (0.009 - 30/180 MHz)
 WiNRADiO WR-G315e (0.009 - 1800 MHz)
 WiNRADiO WR-1550e (0.15 - 1500 MHz)
 WiNRADiO WR-3150e (0.15 - 1500 MHz)
 WiNRADiO WR-3500e (0.15 - 2600 MHz)
 WiNRADiO WR-3700e (0.15 - 4000 MHz)

Technical Specifications
Type Magnetic Antenna Base
Cable type RG-58
Connector on base BNC socket
Connector on cable BNC plug
Cable length 3.9 m (12.8 ft)
Diameter 68 mm (2.7 in)
Base weight 190 g ( 6.7 oz)
Overall weight 330 g (11.6 oz)

Specifications are subject to change without notice due to continuous product development and improvement.
