WiNRADiO AX-48H Broadband Horn Antenna

WiNRADiO AX-48H Broadband Horn Antenna

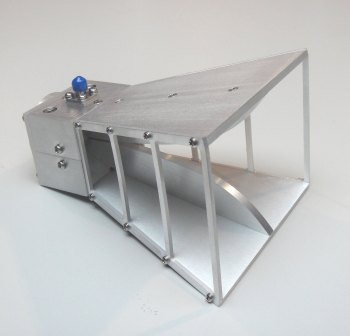

The AX-48H antenna is a broad-band open-ended rectangular horn waveguide antenna, ideally suited for surveillance and monitoring, direction finding, EMI testing and other microwave applications.

The linearly polarized antenna features high and consistent gain over a wide frequency range, is lightweight and small-sized.

The antenna's consistent directional characteristics over the entire operational frequency range make it a perfect tool for monitoring and surveillance of point-to-point microwave communications in the most demanding applications.

The antenna is made of durable, high-quality aluminium material and comes with either N-type or SMA-type female connector (order codes AX-48H/N or AX-48H/S, respectively).

Suitable tripods and carrying cases are also available to assist in mobile applications.

Technical Specifications
Type	Broadband horn waveguide
Frequency range	2 - 18 GHz
Usage	TX or RX
Forward gain	9.7 dBi (2 GHz) 9.9 dBi (4 GHz) 12.3 dBi (8 GHz) 12.6 dBi (12 GHz) 11.4 dBi (18 GHz)
Front to back ratio	20 dB min.
Beamwidth	24-52 @ 3 dB
VSWR	1:2.00 (2 GHz) 1:1.85 (6 GHz) 1:1.45 (12 GHz) 1:1.36 (18 GHz)
Polarization	Linear
Impedance	50 ohm
Connector	SMA (AX-48H/S) or N-type female (AX-48H/N)
Operating temperature	-20º to 80ºC

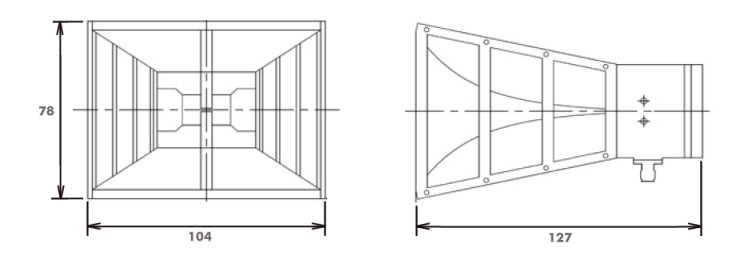

Size	104 x 78 x 127 mm (4.09"x 3.07 x 5")
Weight	0.37 kg (0.82 lb)

Specifications are subject to change without notice due to continuous product development and improvement.
