  WiNRADiO AMFE™ Antenna Multiplexer and Frequency Extender
WiNRADiO AMFE Antenna Multiplexer and Frequency Extender The WiNRADiO AMFE™ Antenna Multiplexer and Frequency Extender fulfills a dual role of an antenna switching unit and a frequency downconverter, making it possible to easily interface separate HF, VHF, UHF and SHF antennas to a wide-band receiver, as well as provide frequency downconversion for input signals up to 8599 MHz.

This device contains a high-stability local oscillator, mixer and various filters to convert an incoming UHF to SHF frequency down to an intermediate frequency 96-1800 MHz, which is then directly applied to the receiver's antenna. This can be used to extend the frequency range of VHF/UHF receivers to high UHF and SHF regions, both for WiNRADiO and third party products.

The local oscillator is stable enough for the downconverter to be usable even for narrow-band modulation modes, and has a low noise figure to be useful for high-end professional applications.

The WiNRADiO AMFE™ Antenna Multiplexer and Frequency Extender is especially suitable for use with WiNRADiO G315 series VHF/UHF receivers (WR-G315i and WR-G315e), whereby it integrates fully transparently to the user, i.e. the frequency entry and display of these receivers automatically extend to 3500 or 8599 MHz (WR-AMFE-3500 or WR-AMFE-8600, respectively), and the antenna switching is also automatic. Physically, the WR-AMFE unit stacks neatly under or above a WR-G315e receiver, providing a neat and elegant extension of its capabilities.

The 3500 MHz model (AMFE-3500) is specifically designed as an option for WiNRADiO WR-G315 receivers, while the 8599 MHz model (AMFE-8600) can be also used with other WiNRADiO receivers or any third party products (and controlled using the supplied software application).

Unlike most simple downconverters, the WiNRADiO AMFE™ unit features a high-stability 0.5 ppm reference oscillator, to ensure excellent frequency stability at the output. An ultra-high stability reference oscillator (0.01 ppm OCXO) is also available as an option.

WiNRADiO AMFE™ stacked on top of a G315e receiver

WiNRADiO AMFE™ stacked on top of the WR-G315e receiver

 Input frequency range DC to 3500 (or 8599) MHz
 Output frequency range 96 to 1800 MHz
 High temperature stability
 High input insulation
 High dynamic range
 Low noise figure
 Simple installation
 Integrates with WR-G315e and WR-G315i receivers
 Suitable for any third-party receivers (AMFE-8600 only)
 Low-noise linear power supply included

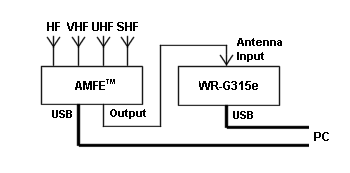

AMFE-3500 (or AMFE-8600) and WR-G315e receiver The AMFE™ unit interfaces neatly with the WiNRADiO WR-G315i or WR-G315e receivers, where the software is able to recognize the AMFE™ unit and expand the ranges of the frequency input and display accordingly.

Switching between the antennas and tuning the local oscillator for the downconversion is accomplished automatically. The AMFE™ enclosure is also similar to that of the WR-G315e receiver and stacks neatly on top or under it.

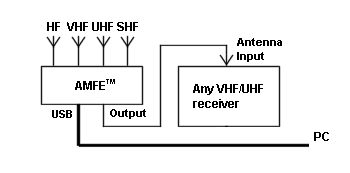

AMFE-8600 and any VHF/UHF receiver The 8600 MHz version (AMFE-8600) can be also used with any other WiNRADiO or third party receiver to provide a cost effective antenna switching and frequency conversion.

To take full advantage of the unit's capabilities, the receiver should have a minimum frequency range of 96 to 1800 MHz, otherwise there may be gaps in the frequency coverage of the SHF input (the antenna switching of the HF, VHF and UHF inputs does not apply any frequency conversion).

Complete AMFE package

What's included?

The complete WR-AMFE package includes:

 WR-AMFE unit
 CD ROM with WR-AMFE application software
 SMA-to-SMA cable
 USB interface cable
 AC/DC linear power supply
 Comprehensive user's manual


 WR-AMFE Detailed Technical Specifications
 WR-AMFE Application Software
 WR-AMFE Software Developer Information
 WR-AMFE Ordering Information

Interested? Please use our Rapid Response Form to register your interest in this product, or to request more information.
